Novaplus T380 Cu Normal

Novaplus T380 CU Normal IUD

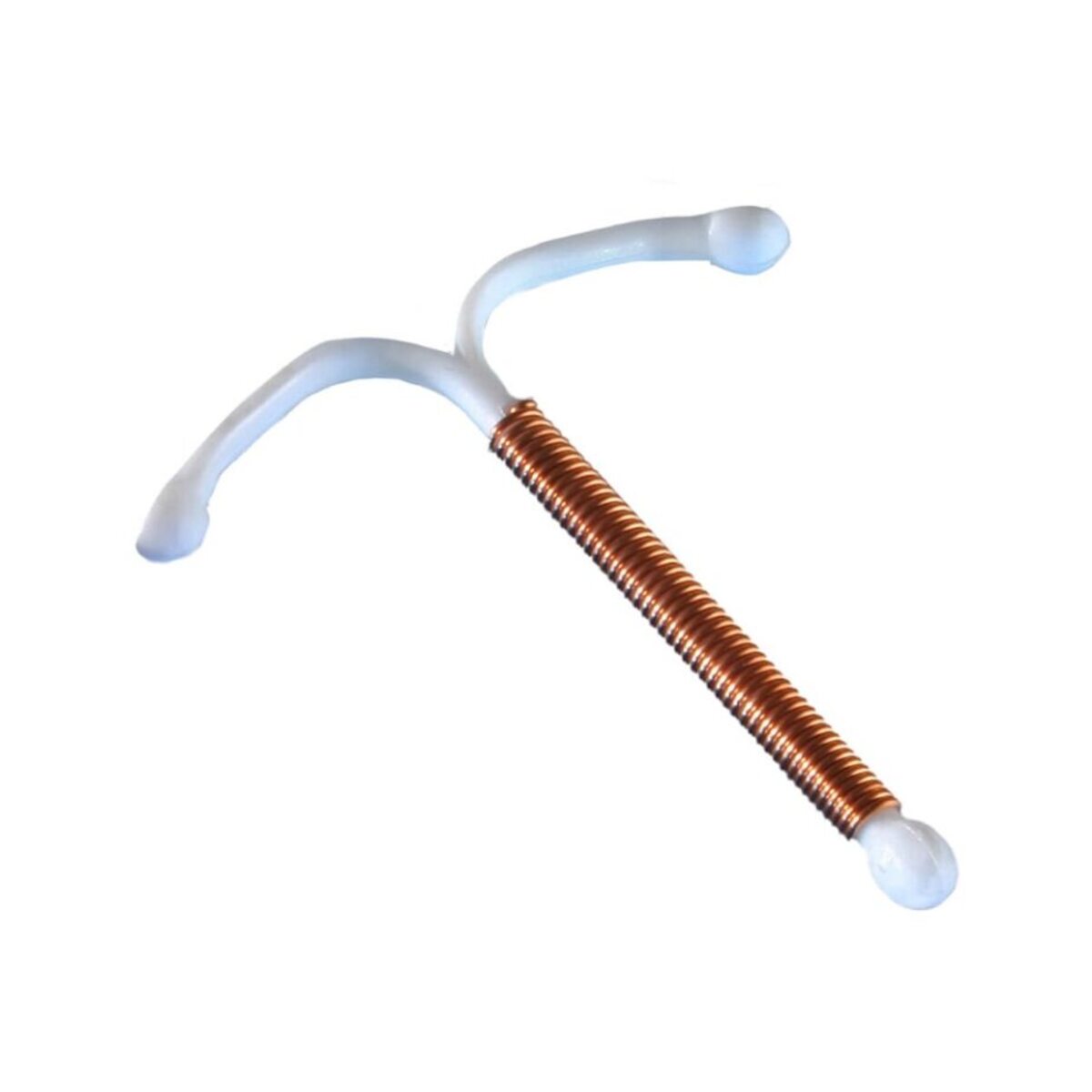

The Novaplus T380 is an Intrauterine Device designed in a "Y" shape that can be completely inserted into the insertion tube by pulling the threads, and it comes with a 380 mm2 copper wire. For safe contraception for up to 5 years.

For contraception. Sterile, single-use product. EC marked non-active implantable device according to Directive 93/42/EEC Class III.

Specification:

• IUD Frame Composition: Polyethylene + Barium Sulfate
• Dimensions 31 mm Width , 33 mm Length
• Wire: Copper Purity 99,99%, Diameter 0,4 mm, Length 302 mm, Surface 380 mm2
• Removal thread: Composition Polyethylene
• Rod: Polypropylene, Diameter 2,20 mm, Useful length 200 mm
• Insertion Tube; Polyethylene Outside diameter 3,8 mm Length 195 mm
• Top Gauge: Polyethylene, Width 7,80 mm, Length 12,50 mm. Height 6,25 mm

Sterile, single-use product. EC marked non-active implantable device according to Directive 93/42/EEC Class III. Sterilisation Methos: Ethylene Oxide

INSERTION PROCESS: Utilising the rod to propel the IUD from the insertion tube into the uterus.
